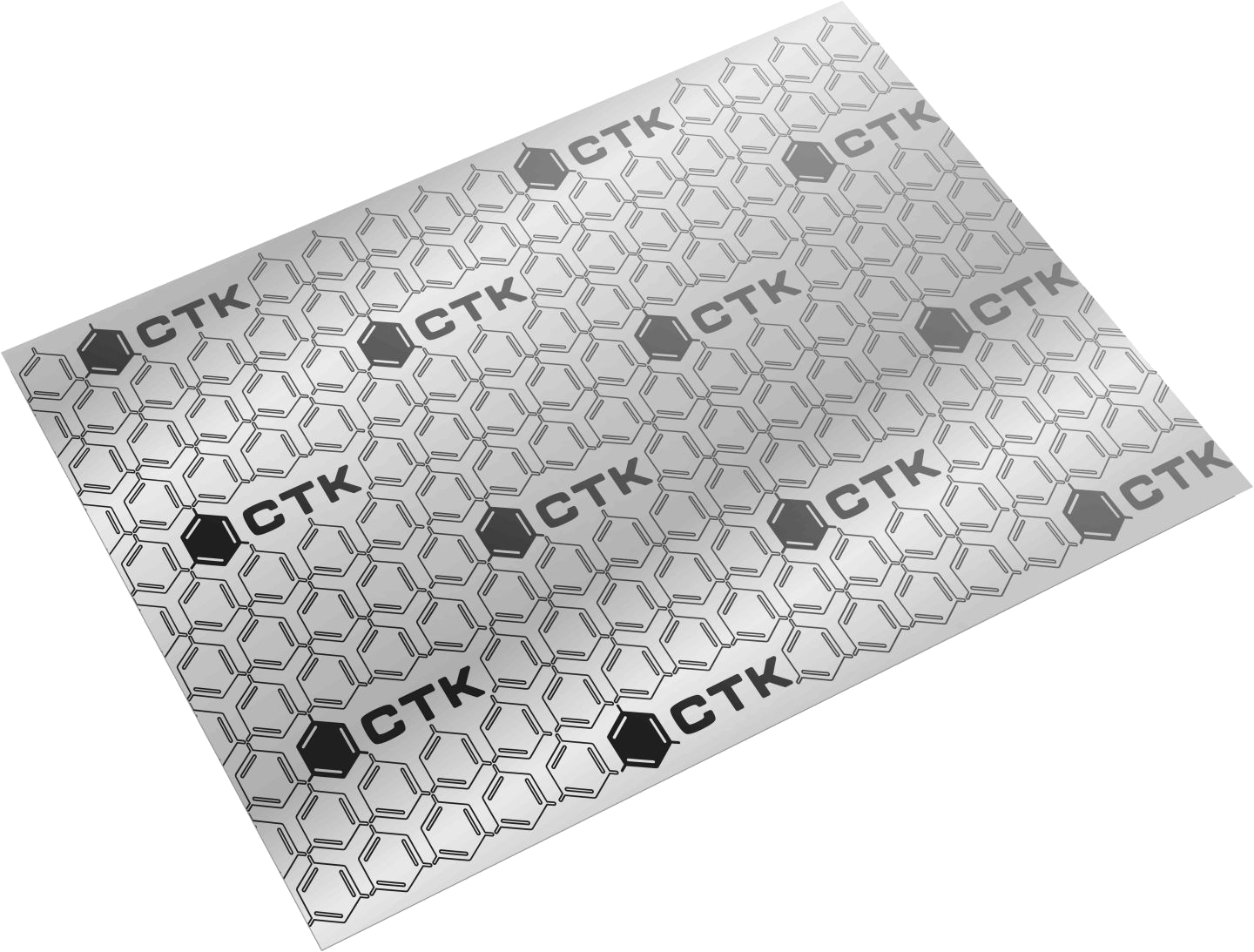

CTK Foilfix

Aluminium foil 200 microns thick (0.2 mm) with strong Henkel acrylic glue. This material is mainly used as the first layer in sealing technological openings in the car door chambers, on which the second layer is applied in the form of an Alu butyl sound-absorbing mat.

Serves as the base on which an anti-vibration material is applied.

CTK Foilfix

What is CTK Foilfix?

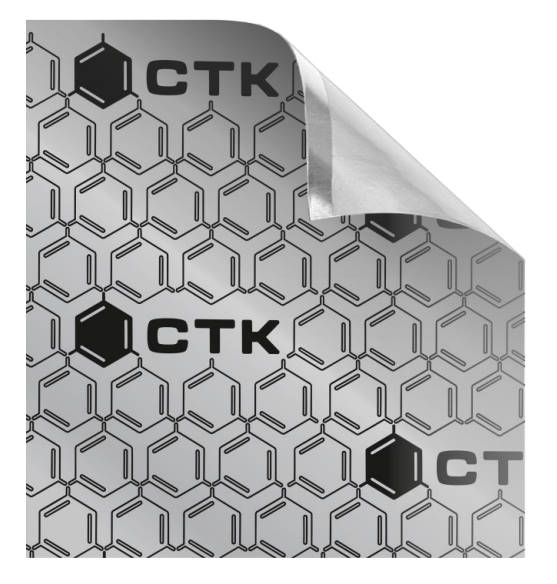

CTK FOILFIX Sheet

Aluminium foil 200 microns thick (0.2 mm) with strong Henkel acrylic glue. This material is mainly used as the first layer in sealing technological openings in the car door chambers, on which the second layer is applied in the form of an Alu butyl sound-absorbing mat. Due to this, high rigidity of the entire surface of the damping door section is achieved without the need to install additional elements (for example, metal flat rods) that reinforce the damping mat glued over any panel gaps. High rigidity of the material, sealing the surface above the technological openings, is primarily due to the greater mechanical stability of the walls of the entire door panel, which also acts as a housing for medium-sized subwoofers installed in the car door. This improves the quality of the sound and speed of low frequencies reproduced by the door subwoofers. FoilFix 200 can be used freely on other body elements, for example, as a second light layer glued over an aluminium-butyl cushioning mat to further enhance large body surfaces (such as roof or floor).

To effectively use the CTK FoilFix 200 material, before gluing it is recommended to cut it to a given shape with an allowance of several centimetres, which ensures strong adhesion of the foil to the base around the edge of the technological opening of a certain size. It can be helpful to put a sheet of foil with a protective film over the opening and press it to the edges of this opening (for example, rolling the sheet around the edges of the opening using a roller). This will allow to reproduce the shape to be cut without wasting the material (remember the allowance). Next, the technological opening should be covered with a foil of a pre-cut shape and tightly pressed around the edge. In the area of the opening itself, the CTK FoilFix 200 foil can be rolled with moderate pressure in order to slightly shape the cavity, if this is necessary for any reason. The next step is the standard application of aluminium damping mats on the entire surface previously prepared in this way, including technological openings covered with CTK FoilFix 200 aluminium foil.

Where can I use CTK Foilfix?

Door Bonnet Boot Floor Roof Wheel Arch (ext) Wheel Arch (int)
0.2mm Tick mark Tick mark Tick mark Tick mark Tick mark Tick mark Tick mark

Technical Specifications

Thickness(mm) 0.2mm
Sheet Size(mm) 700 x 500
Foil Thickness(um) 200
Weight per sheet(g) 240
Sheets in package 10
Coverage (m2) per package 3.50
